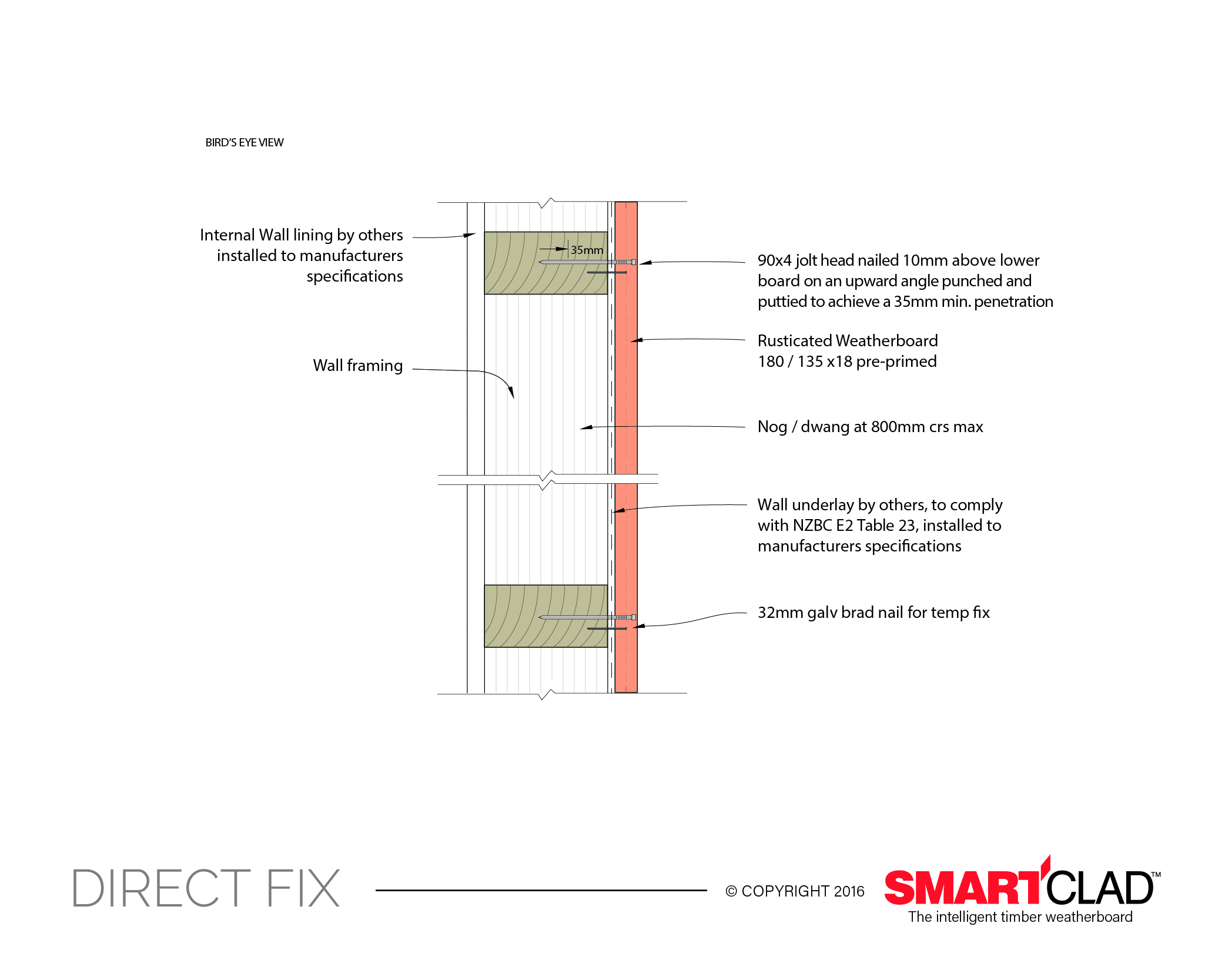

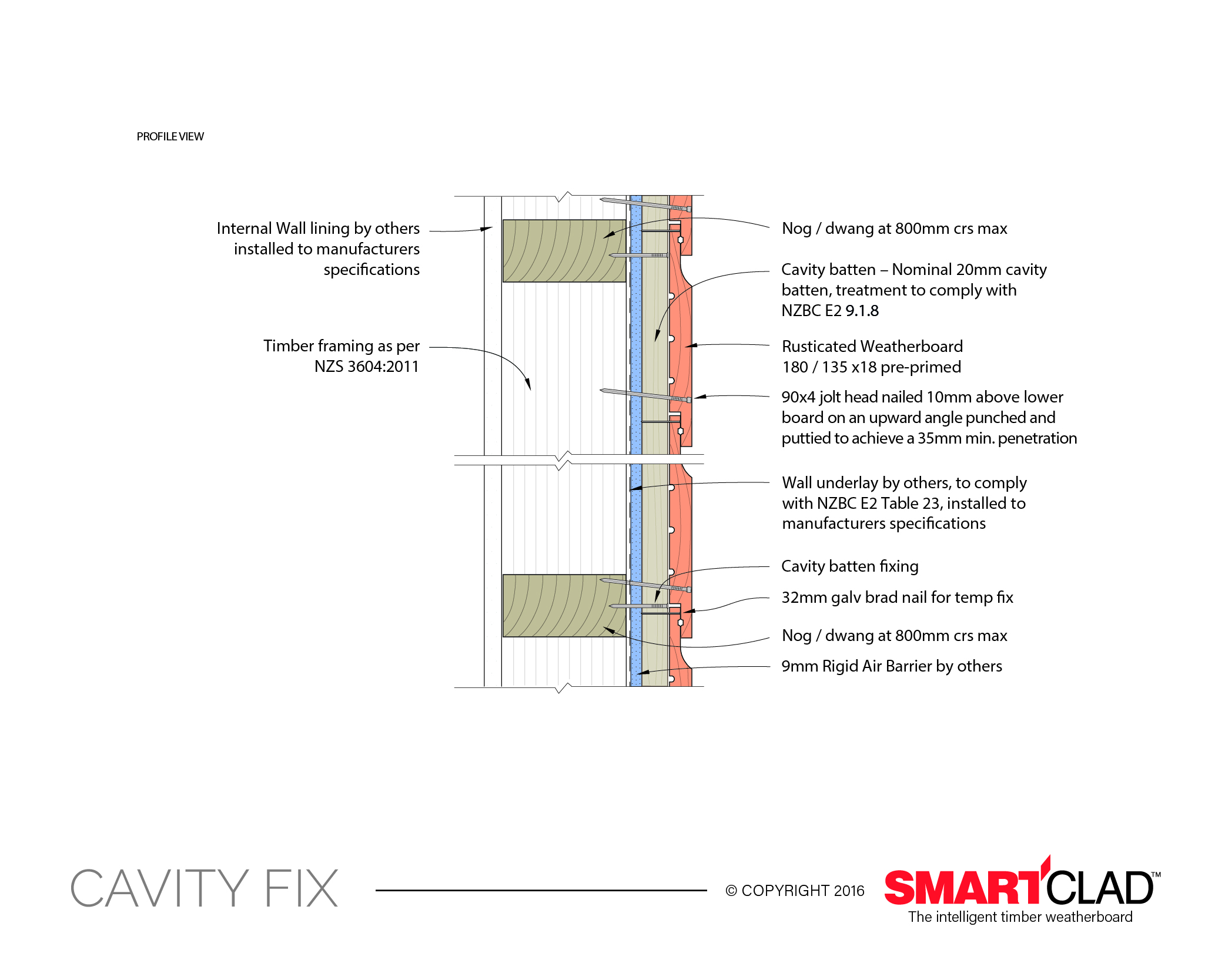

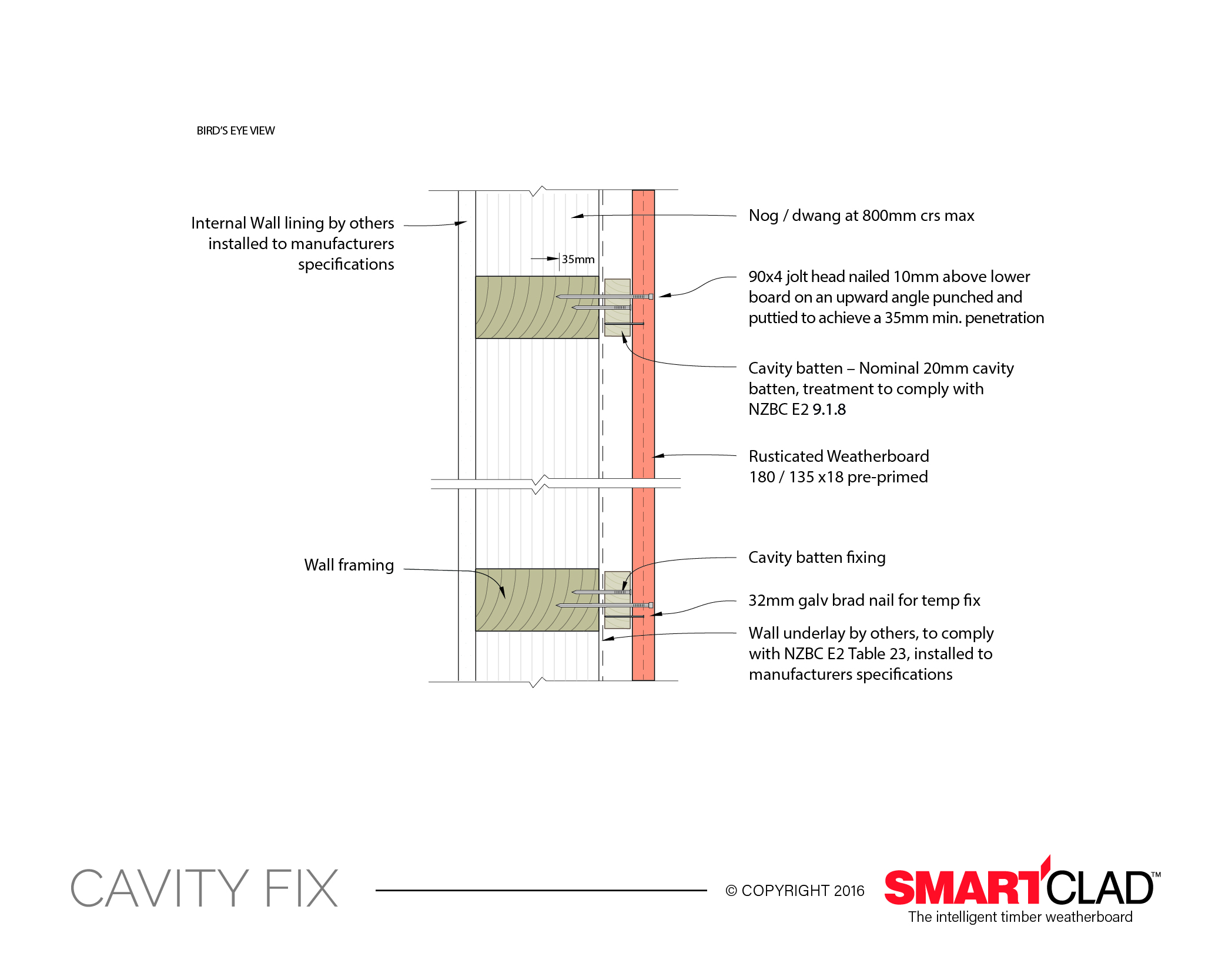

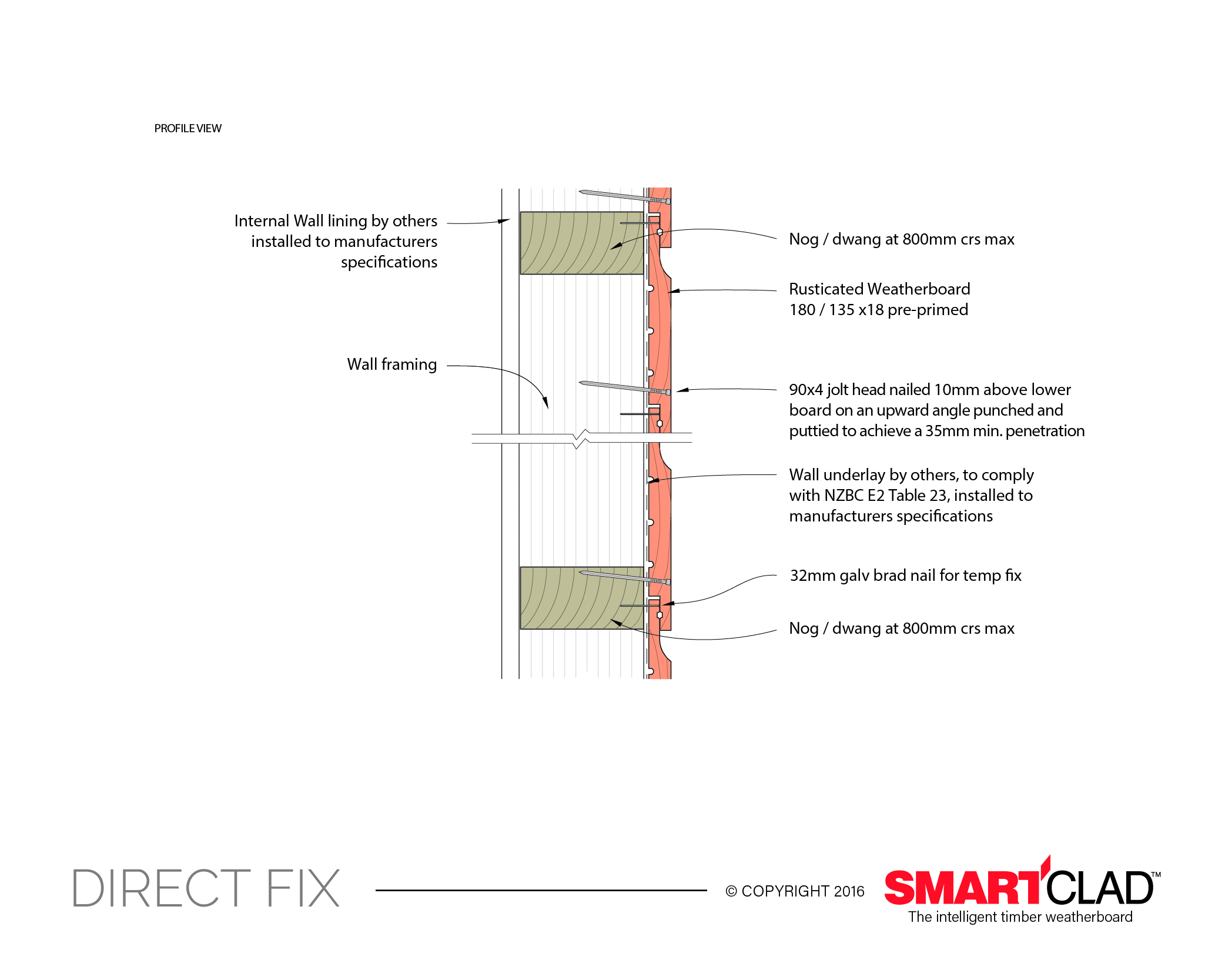

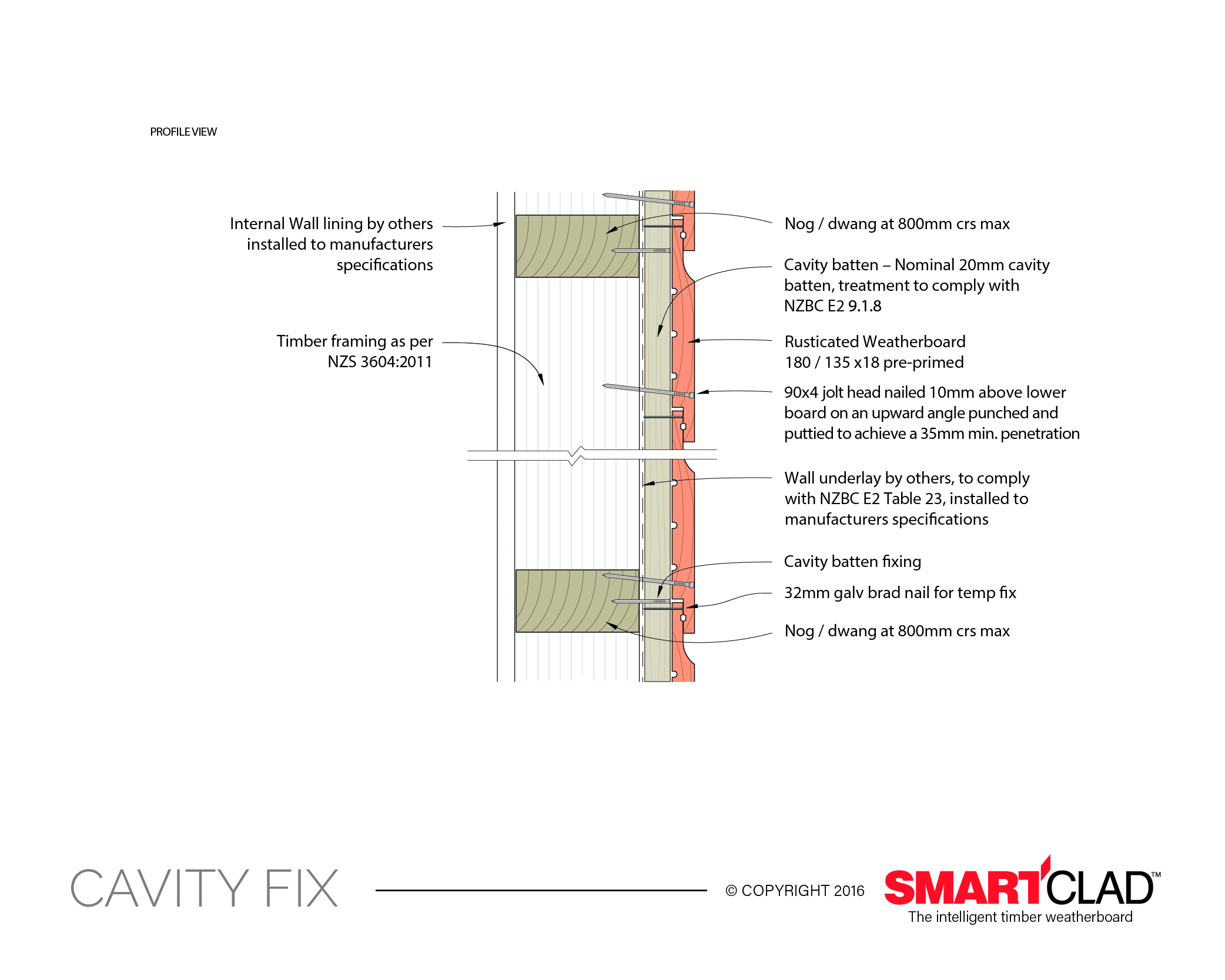

RWBC Figure 1 Weatherboard Fixing
SmartClad Technical drawings – Figure 1
RWBC – Figure 1
Download Now!
Categories:
RWBC
,
Tech-Drawings
