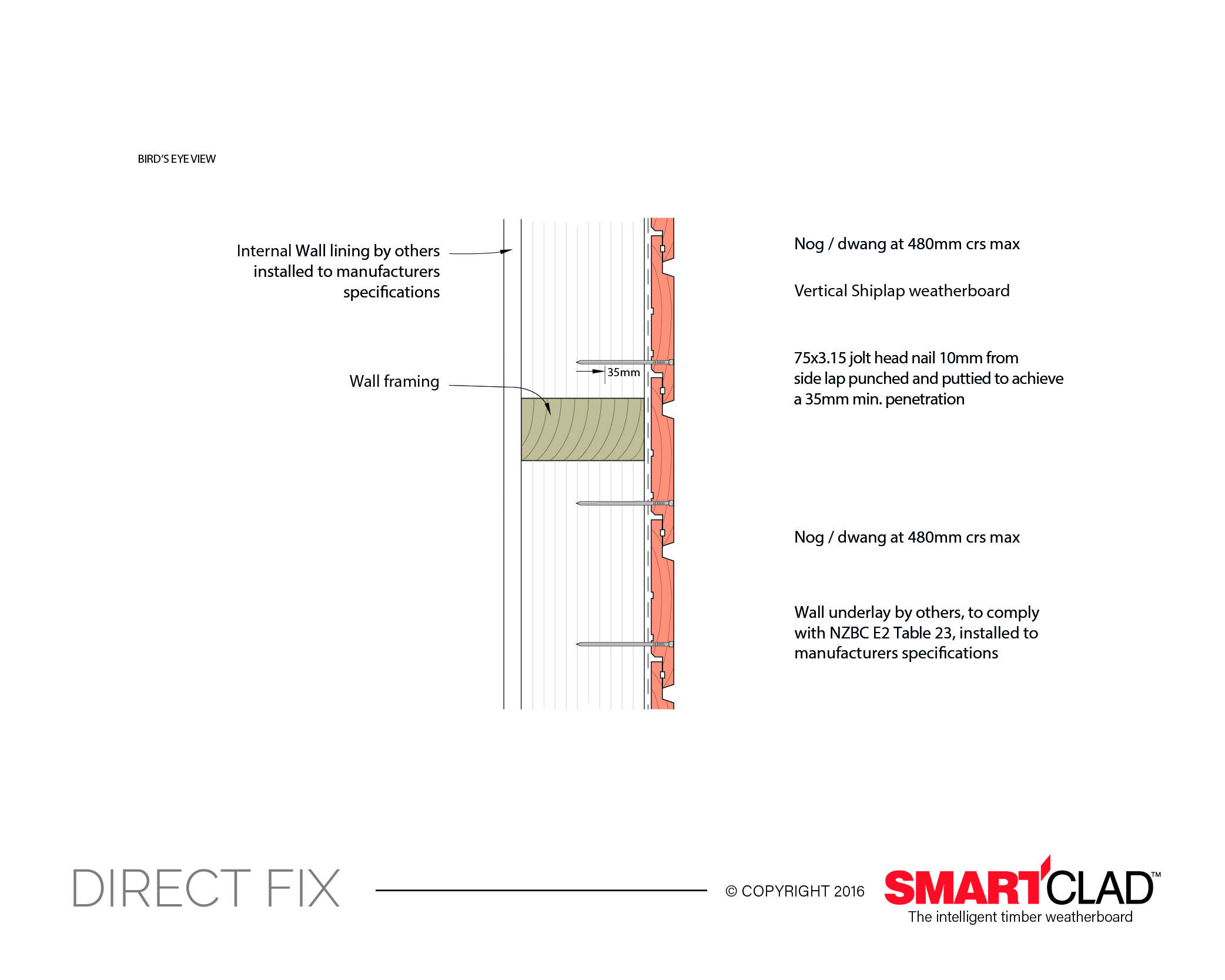

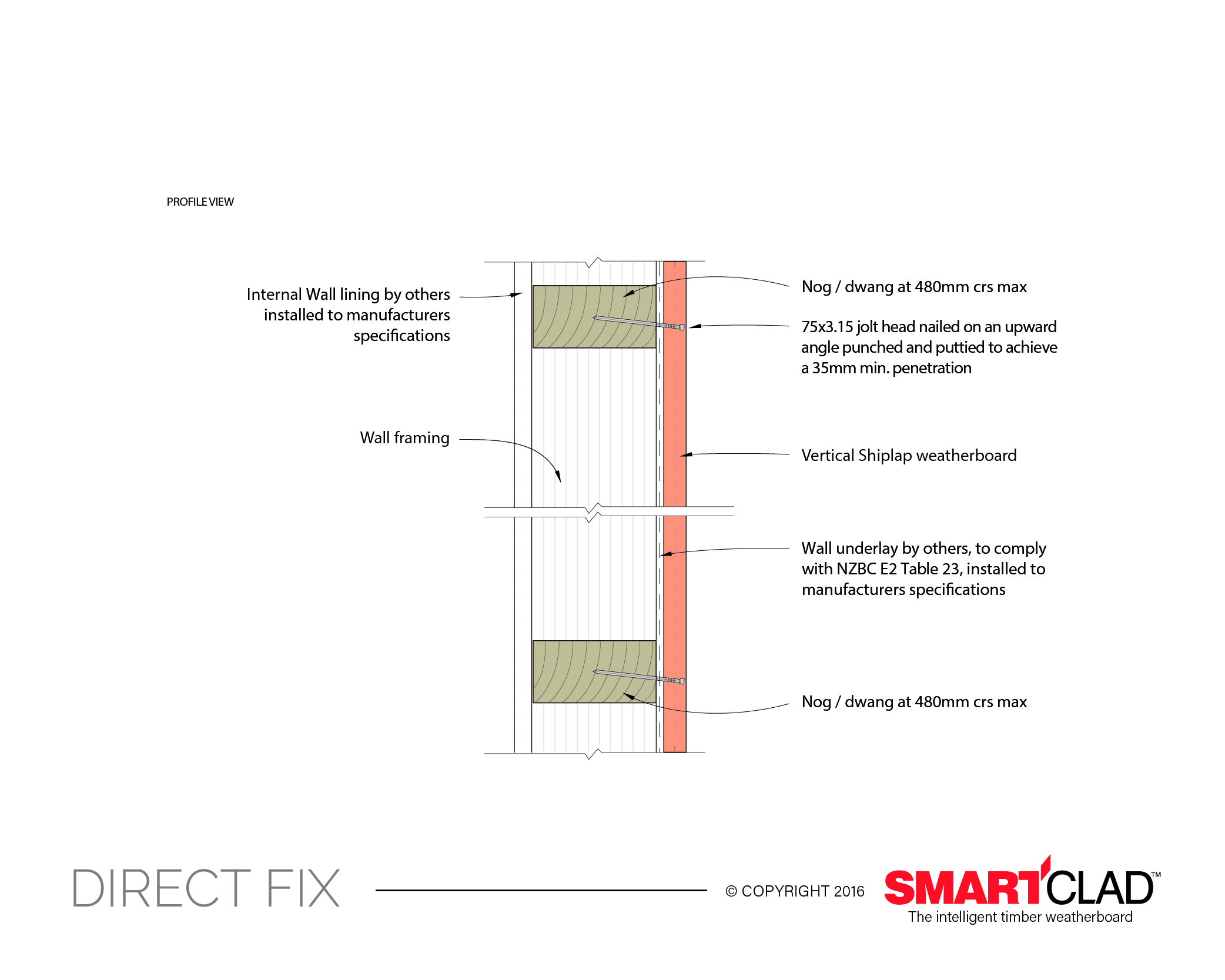

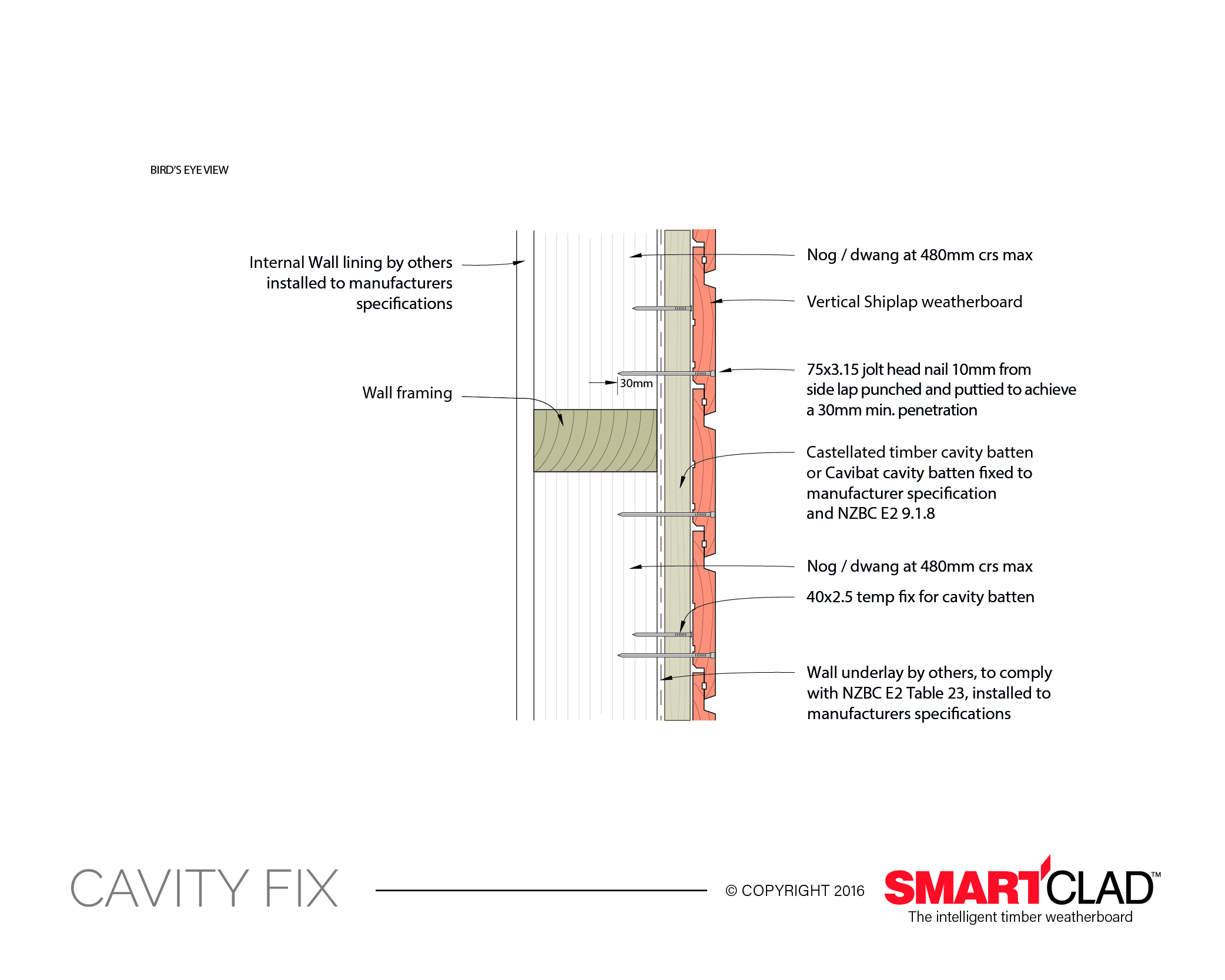

VSLC Figure 1 Nailed Fixing
SmartClad Technical drawings – Figure 1
VSLC – Figure 1
Download Now!
Categories:
Tech-Drawings
,
VSLC
